System Values - General - Miscellaneous
Table Of Contents
These system settings control several areas of Khaos Control, including user login security, automatic logout, report printing, email attachments and Channels 2.0.
Warning: Changing these settings may cause unforeseen issues. If you are unsure about a setting or its impact, check with the Khaos Control Support Team before making changes.
New systems are normally supplied with the default values shown below.

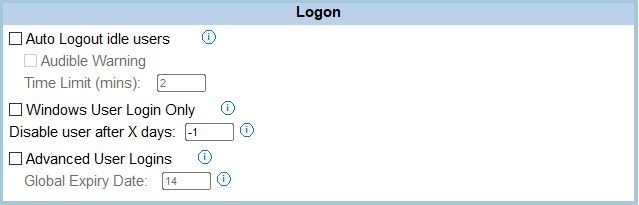

Logon
The Logon area controls how users access Khaos Control. You can use these settings to automatically log out inactive users, manage Windows-based login options and control password expiry.
Auto log out idle users
Default: Unticked
Use Auto log out idle users to automatically close Khaos Control when a user has been inactive for longer than the configured time limit.
A user is considered idle when they have not been opening, editing or saving records.
This can improve security and can also help organisations with a limited number of Khaos Control licences by releasing licences that are no longer actively being used.
- Ticked: Khaos Control automatically logs out idle users after the specified Time Limit (mins).
- Unticked: Users remain logged in regardless of how long they have been inactive.
Note: Automatic logout does not apply while the EPOS screen is open.
Audible Warning
Default: Unticked
When Auto log out idle users is enabled, select Audible Warning if you want Khaos Control to play a high-pitched beep before the user is automatically logged out.
For more information, see Auto Logout.
Time Limit (mins)
Default: 2 minutes
When Auto log out idle users is enabled, enter the number of minutes a user can remain inactive before Khaos Control logs them out.
Windows User Login Only
Default: Unticked
Warning: Do not enable Windows User Login Only unless the Windows Username functionality has already been configured and verified as working. Enabling this setting incorrectly may prevent you from accessing Khaos Control.
- Ticked: The standard Khaos Control username and password login is no longer used. Users access Khaos Control exclusively through the Windows Username login system.
- Unticked: After logging on to their computer, users must still log in to Khaos Control.
Disable user after X days
Enter the number of days a user can go without logging in before Khaos Control marks them as unavailable and hides them from the login drop-down.
Use:
- -1 to disable this feature.
- 0 to use the default period of 60 days.
- A specific number to set your required inactivity period.
Advanced User Logins
Warning: This option affects the Windows Username option in [ System Data - Users ].
Enable Advanced User Logins to use advanced login features, including applying a global password expiry period to existing users.
Global Expiry Date
This setting specifies how many days can pass since an existing user's previous password change before their login password expires.
The default is 14 days, and the value should be a minimum of 14 days.
Printouts
The Printouts area controls how printed reports are displayed, including report shading, logos and printer selection.
Report Shading
Default: Ticked
This setting works with the Show Shading option in Basic Reports.
When both options are enabled, shaded areas of a Basic Report appear with a grey background.
Logo Filename
Default: Empty
Use Logo Filename to select the graphical logo used on invoices and other reports. JPG and GIF image files are supported.
To select a logo:
- Click the ellipsis (...) button next to Logo Filename.
- Browse to the required logo file.
- Select the file.
Store the logo somewhere that is immediately accessible to every Khaos Control user. For guidance, see File Locations.
Logo hierarchy
Logos used on reports such as Sales Invoice reports can be configured in several places.
If a logo is configured in more than one place, Khaos Control uses the following hierarchy, with the first applicable logo taking priority:
- [ System Data | Sales Order Processing | Logo ]
- [ System Data | Sales Order Processing | Sales Source ]
- [ System Values | General | Logon and Printouts ]
Use System Default Printer
Use this setting to control when Khaos Control overrides the printer already selected in the report printing dialogue.
Choose from:
- Disabled
- Over RDP (default)
- Always
Email Manager
The Email Manager settings control how Khaos Control handles files and stock-specific documents used as email attachments.
For more information about stock documents, see Add ability to link documents to stock items for emails.
Restrict Local File Attachment
This setting controls whether files from local drives can be added as email attachments when using Khaos Control on a hosted system.
Disabling Restrict Local File Attachment allows files to be added from local drives.
Missing Stock Document
Use Missing Stock Document to choose what Khaos Control should do when a document linked to a stock item is due to be attached to an email but the file is unavailable.
Choose from:
- Prompt User: Khaos Control prompts the user when the document cannot be found.
- Skip missing: The unavailable document is skipped.
- Error: Khaos Control reports the missing document as an error.
Channels 2.0
The Channels 2.0 area contains settings relating to your Channels 2.0 connection.
Channels 2.0 Test Mode
Default: Unticked
Enable Channels 2.0 Test Mode when using Channels 2.0 with a test database.
This helps prevent test activity from clashing with live data.
Upload Pending POrder Information
Default: Unticked
Enable this option to include stock information relating to purchase orders as part of the stock status procedure.
Only enable this setting if your website is equipped to handle this data. Otherwise, leave it unticked.
Note: New Khaos Control systems are normally supplied with the default values shown in this article.
